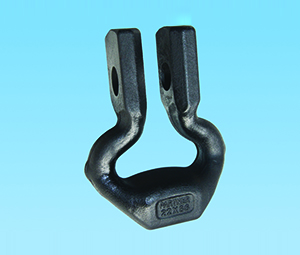

矿用马蹄式接链环
马蹄式接链环专门为连接双边链而设计,其外型大小符合MT/12718的标准要求,在制造过程中选择了富含Cr,Ni,Mo 合金元素的高合金钢和多重热处理工艺,以确保与链轮的配合,安全运行,并从而保证得到了优良的机械性能与疲劳寿命。
With the structure and shape meets the requirement in MT/12718 standard system (Chinese Standard System),the shackle connector is professionally designed for matching with the twin-outboard chains .Its perfect engagement with sproket and safety running is contributed to the careful selection of high alloy steel containing Cr,Ni,Mo and multi-heart treatment technology during the manufacturing process.Thus bring about the optimized mechanical prefomance and fatigue cycles.

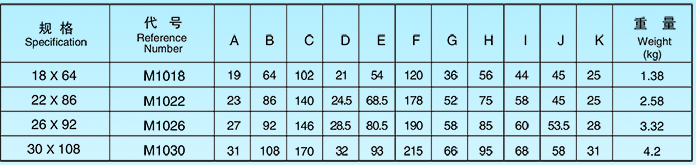

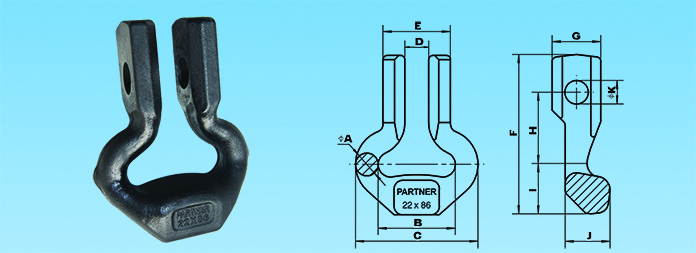

尺寸和重量

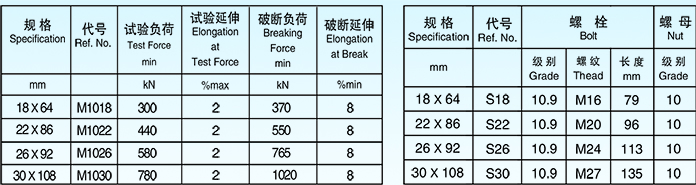

机械性能
