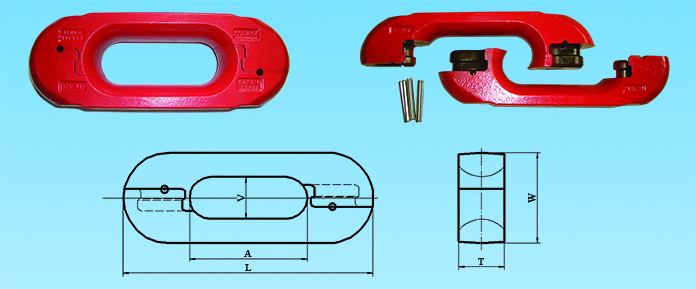

 帕森斯V锁宽带式接链环专门用于连接宽带圆环链,制造过程中选择了富含Cr、Ni、Mo合金元素的高合金钢和多重热处理工艺,具有非常高的拉伸性能和疲劳寿命。

这种宽带链只可垂直使用,并经精心设计,以确保对链轮的配合。

V-lock Broad Band Chain connector from Parsons is deployed to connect the Broad Band Chain. The tensile and fatigue performance is particularly impressive and has been achieved by careful selection of raw material  include Cr,Ni and Mo and heat treatment during the manufacturing process. The perfect engagement  with sprocket only in Vertical has been achived.

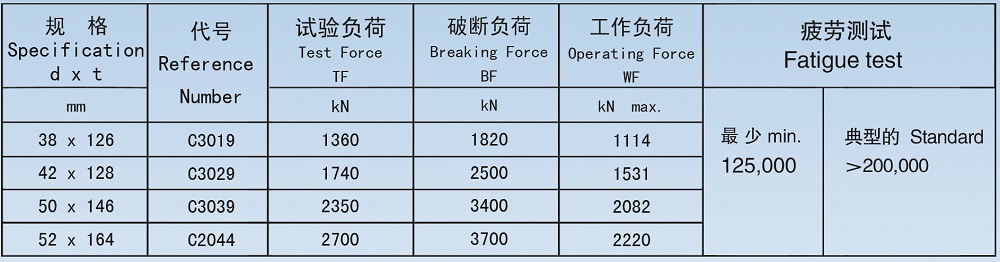

加强型矿用爱游戏ayx登录入口机械性能

Mechanical properties of the Broad Band Chain Connector

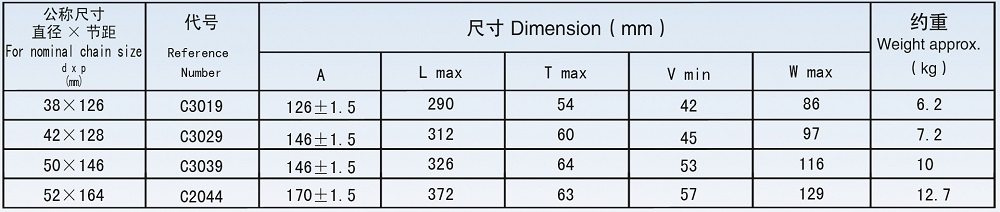

尺寸与质量

Size and weight

备注:

实验负荷下最大伸长率1.2%

参考DIN22259:2001验证方法及程序

Note:

Elongation at test force -1.2% max

Refer to the test methods and procedures of DIN 22258:2001
